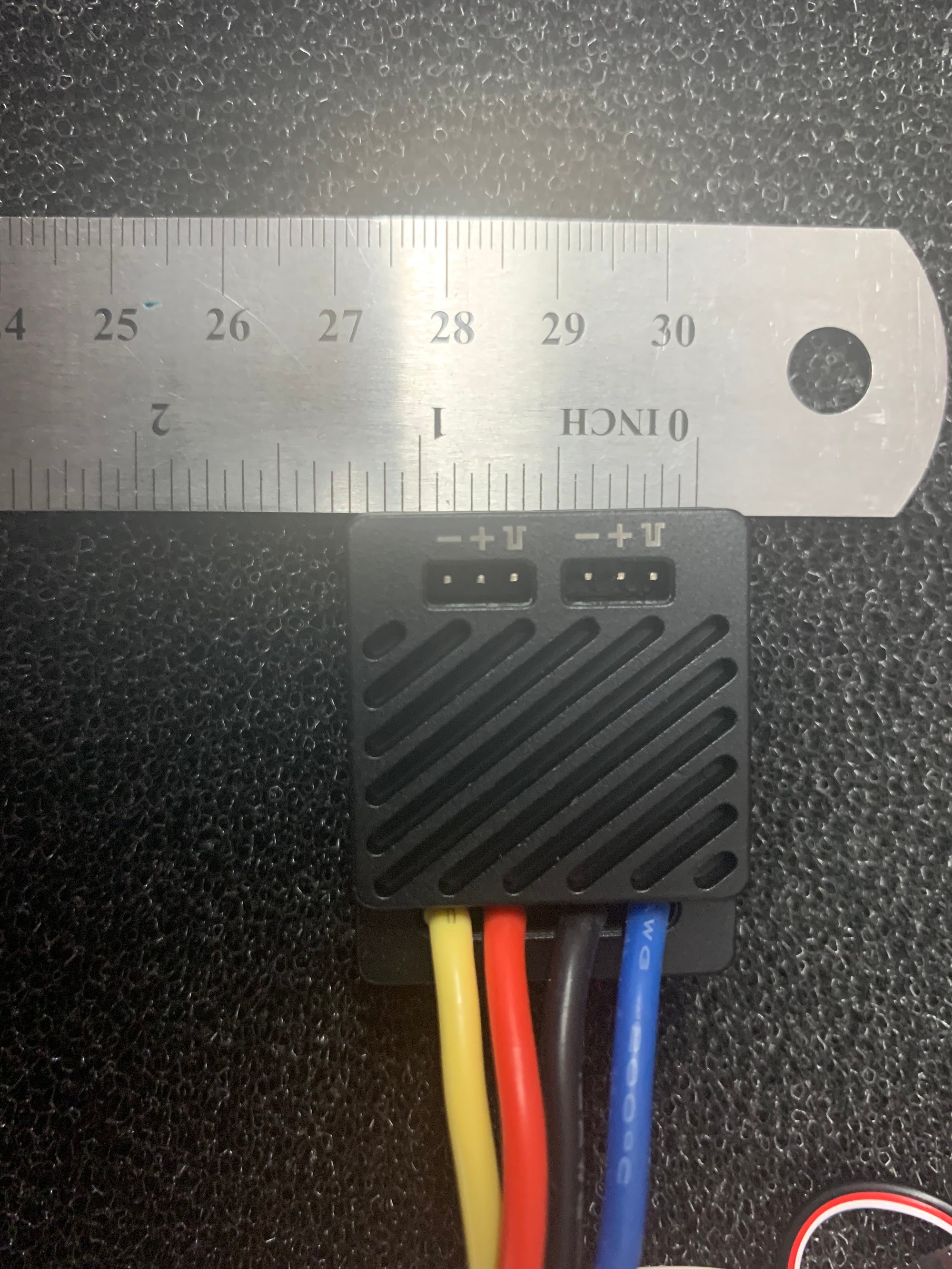

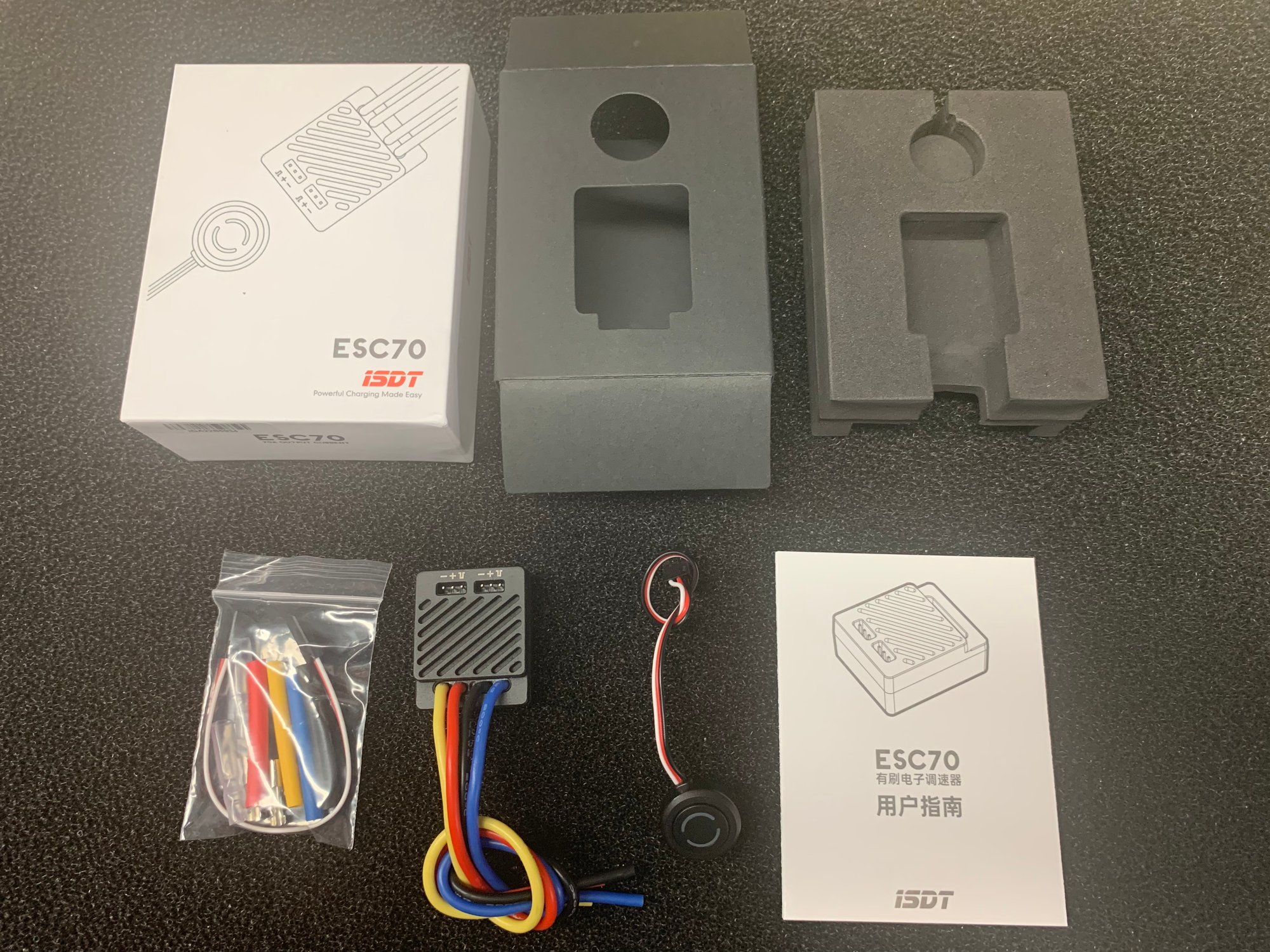

ISDT ESC70 Speed Control w Bluetooth

Description:

Item Brand:ISDT

Model:ESC70

Cont./Peak Current:70/120A

Motor Type:540/550/775 Brushed Motor

Application:1/8 1/10

Support batteries:Lipo(2-3S)/NiMH(6-8S)

BEC Output:3A amp rating,5V-7.5V Switch (Stepping 0.1V)

Wire/Connectors:16AWG 200mm / No

Explanation for LED Status

Power On:Short press once-white LED flashes

Standby:Green LED on

Error:Red LED flashes

Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes

Bluetooth Connected: Blue LED ON

Power Off: Long press once

Features & details
Fully waterproof design for all conditions. (Note: please clean and perform maintenance after use for avoiding corrosion)
Advanced electronic switch and Bluetooth two-in-one module, Support real time operating parameter and status via the ISD Go APP.
Built-in BEC with adjustable output features; outputs continuous current up to 3A, and support 5V to 7.5V with 0.1V adjustment via ISD Go APP. Support various powerful rc applications and high-voltage servos.
Adjustable PWM frequency and advanced synchronous function provide ideal throttle curve and outstanding performance for dierent vehicles, conditions.
Adjustable Active drag brake function and adjustable Brake force or initial braking. Slope anti-skid locking function specially designed for RC Crawler that characteristics operating on toughest terrain.
